Group 6

How to order

Choose your TLK-20 kiln below then follow these steps:

  1. Choose location
  2. Carry out site survey
  3. Consider shading

There are five options:

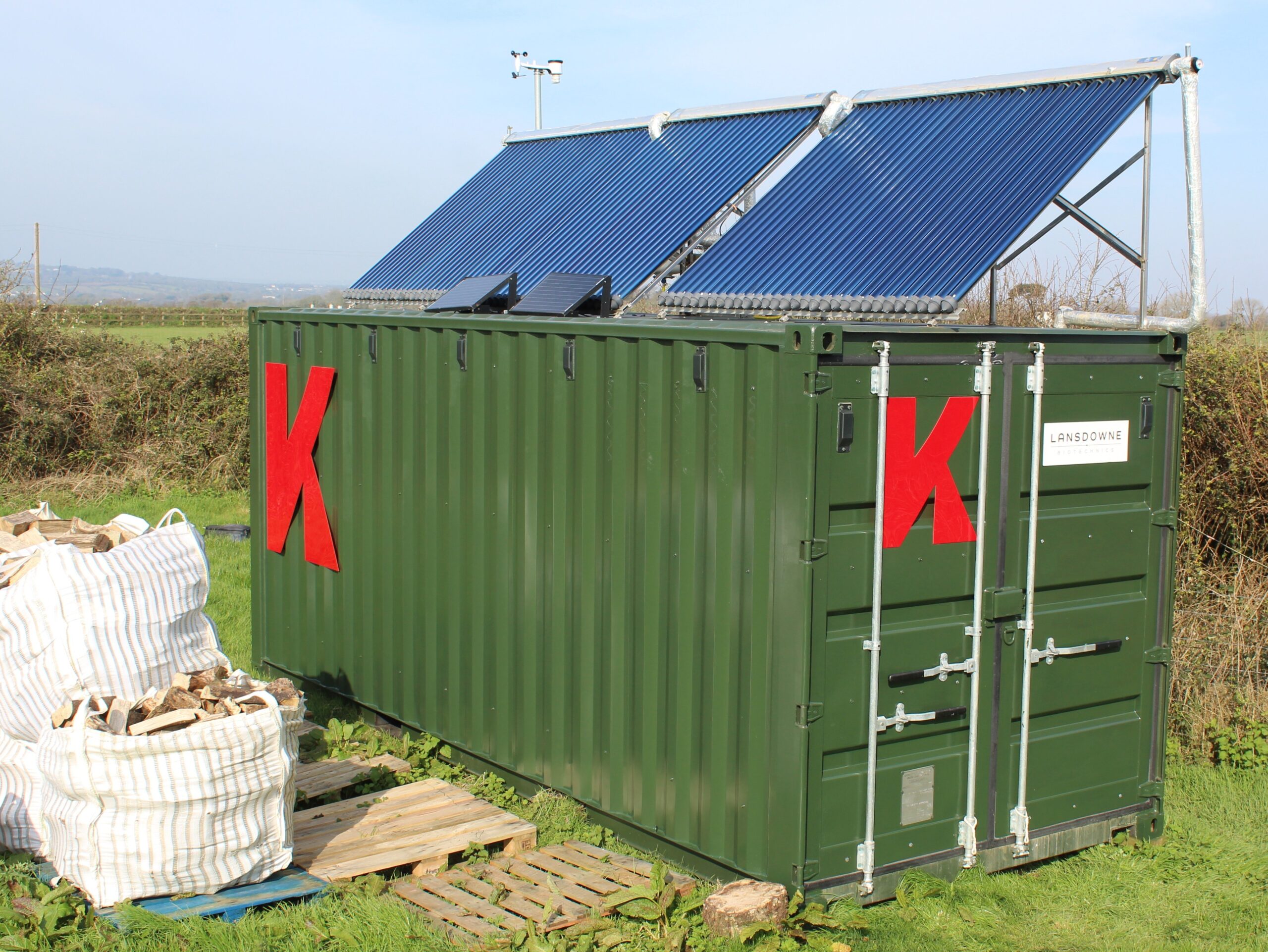

Solar Wood Kiln - East Door

TLK20-SOE

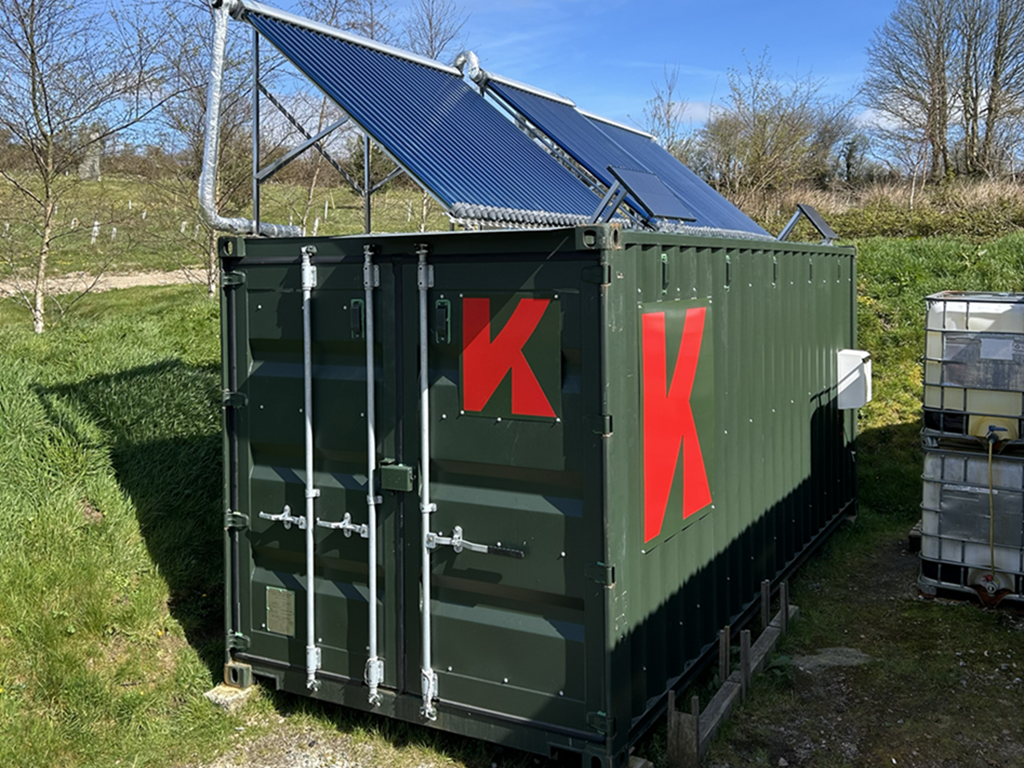

Solar Wood Kiln - West Door

TLK20-SOW

Heat Pump - Electric Wood Kiln

TLK20-ATW

Solar with Electric back up

TLK20-SAW (or SAE)

Biomass (or Waste Heat) Wood Kiln

TLK20-W

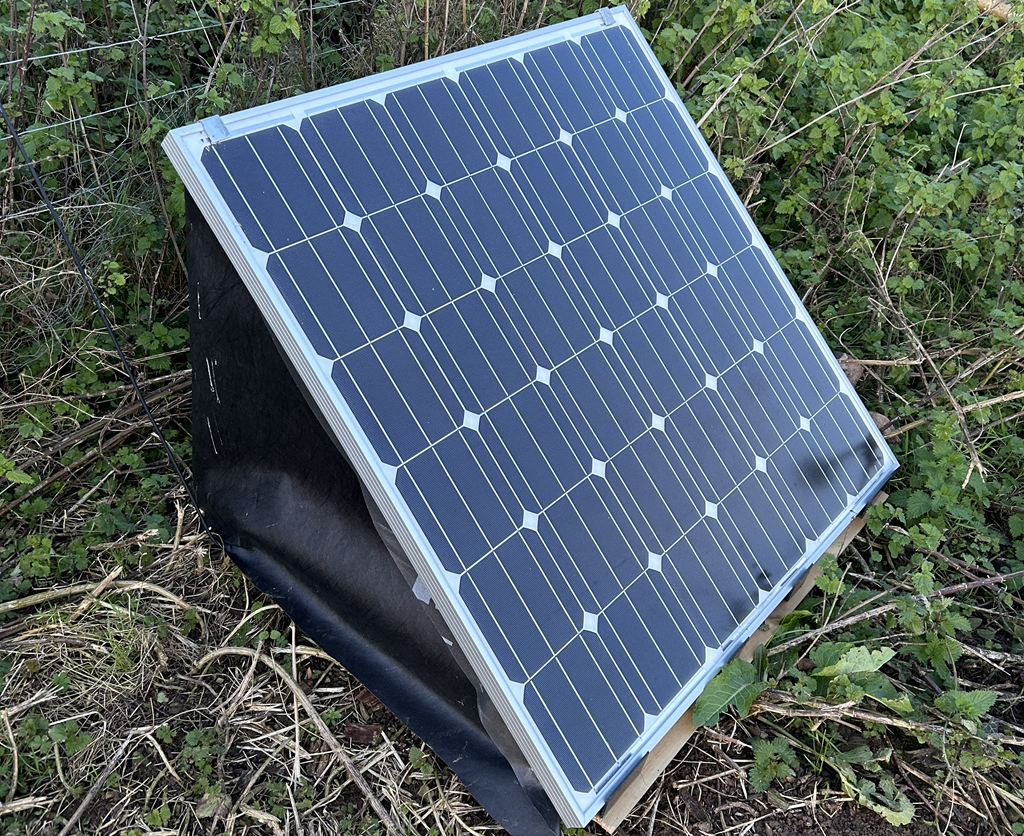

Off-Grid WiFi Hotspot for remote EMC Wood Moisture Content monitoring

TLKX-WiFi

Step ONE

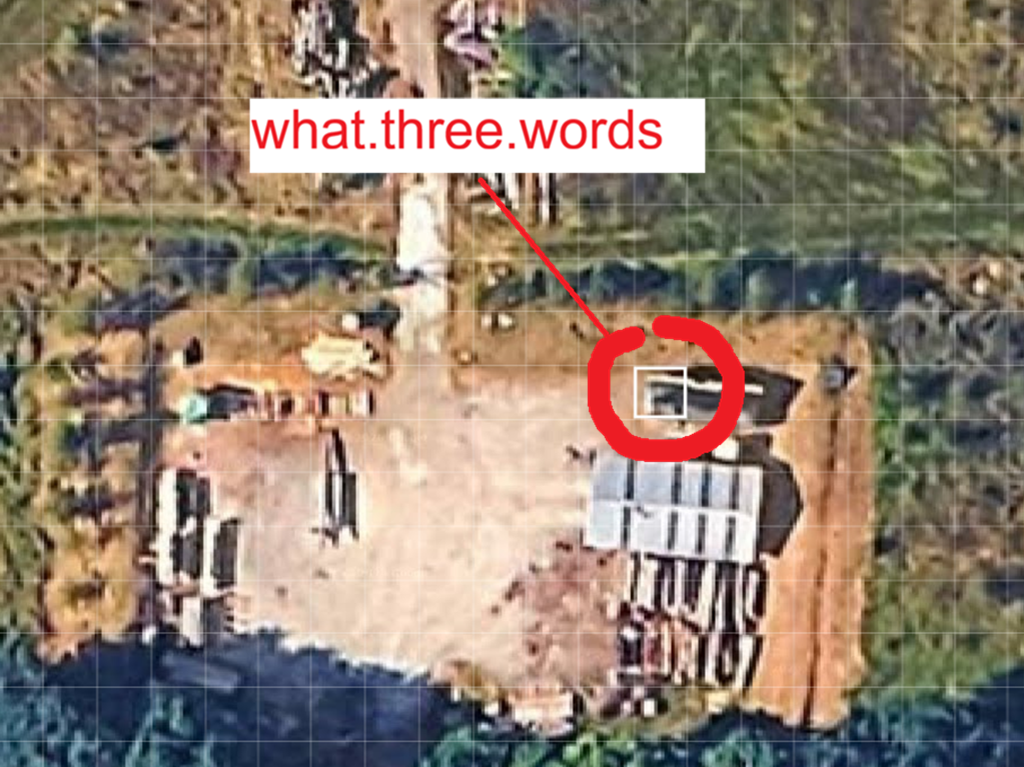

Please provide details of your preferred location. What3Words is a great tool for pinpointing the exact location you require.

What3Words

Step TWO

All TLK20 kilns will need a site survey.

Please provide a drawing of the yard with dimensions, and consider the yard space you will need to load and unload the kiln using a telehandler or forklift.

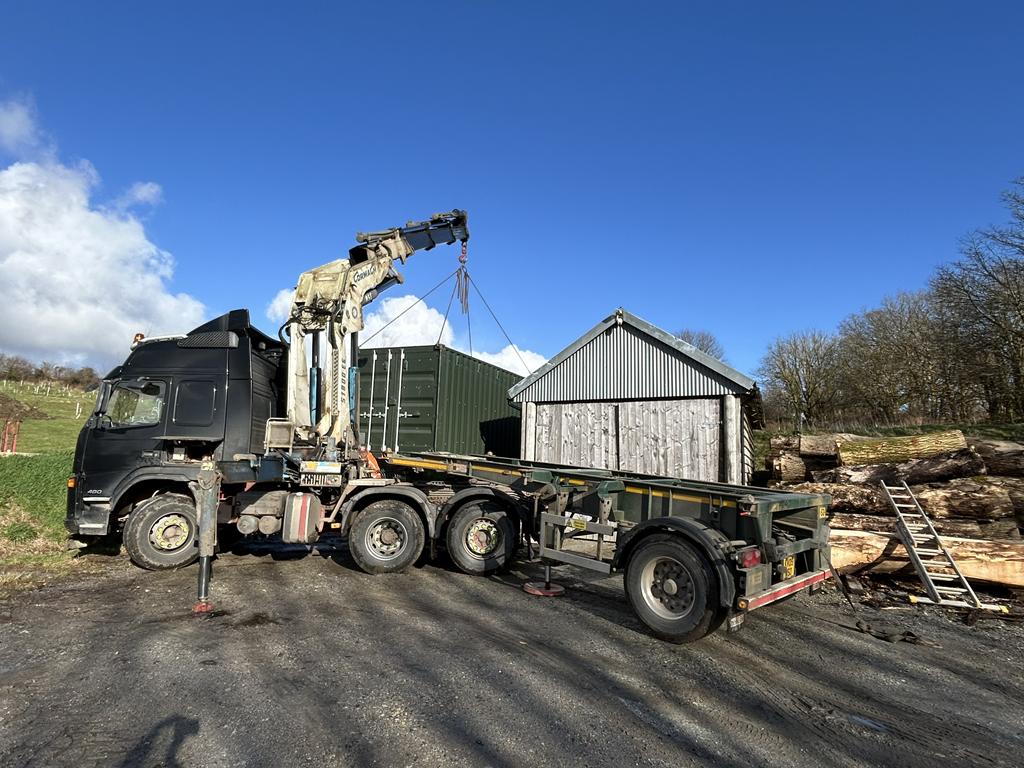

Please also consider the route to site for delivery. Are there any narrow lanes or bridges? The Kiln will be delivered by specialist container lorry with HIAB crane. Can the lorry stop within a few meters of the final site, or will we need to consider moving it into position with a 5 tonne telehandler / forklift?

What3Words

Step THREE

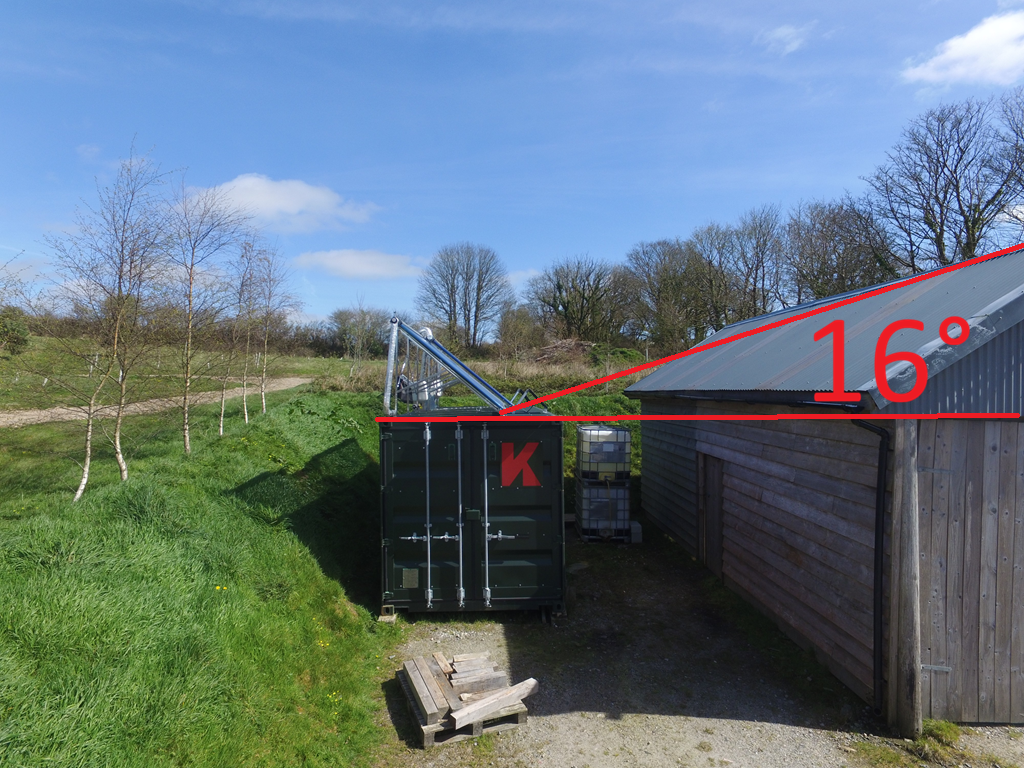

For Solar Wood Kilns please consider the sky to the South of the kiln and the angle of the sun in winter. The angle at the Winter Solstice ranges from 16° in Cornwall, 14° in the Midlands, 12° in Northumberland and 9.5° in Aberdeenshire. Please also consider shading from trees in the summer. A member of our team can assist you with these calculations during a site visit.

Contact Us

Custom Build – TLKX-C-serial number

The Lansdowne Wood Kiln process is ideal to be scaled up to any size. This type of wood kiln chamber can be installed into existing buildings or custom designed buildings and positioned on-site alongside waste heat generating plants. Water temperatures from 40°C upwards can be used. Typical applications include:

Contact Us

Domestic Waste Incineration plants

This thermodynamic process is uniquely engineered for utilizing low-level waste heat.*

  1. Boiler — water heated by incinerated domestic household waste
  2. Turbine + Generator — electricity to power homes
  3. Condenser — water MUST be returned to the liquid state before it is returned to the boiler, releasing waste heat
  4. Lansdowne Wood Kiln — utilising the waste heat to dry timber for construction or firewood

Datacentre water cooling

The Lansdowne Wood Kiln thermodynamic process is ideal for utilising the cooling water from a datacentre. Lansdowne Wood Kilns can be added into the flow from the cooling matrix either directly or via a heat pump cooling system.

*Estimations based on design calculations. Actual capacities will vary depending on the species of wood, moisture content when loaded, loading style and spacing, weather conditions, site positioning, and other parameters. Please contact us for a better understanding of your specific site configuration. E&OE
